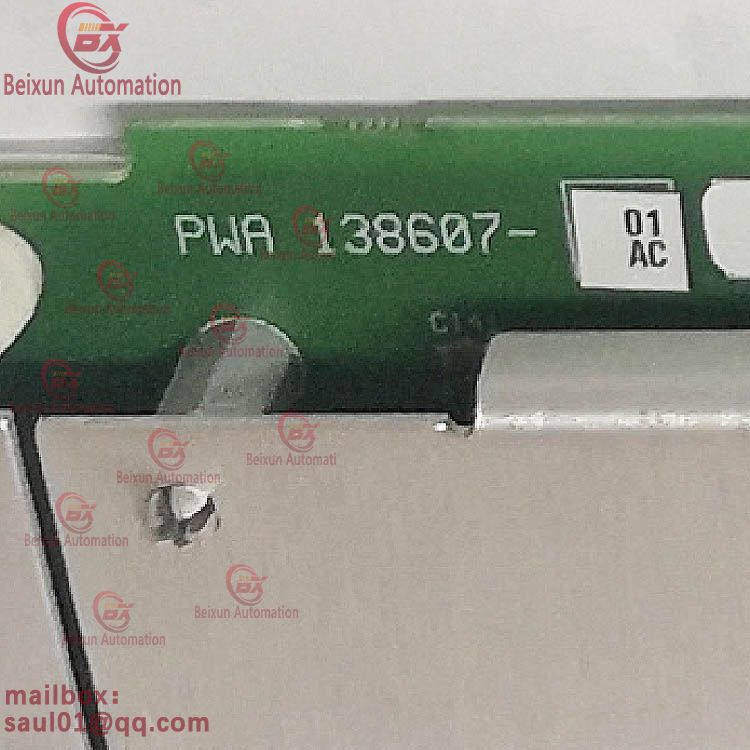

The BENTLY 3500 - 22M 138607 - 01 Transient Data Interface Module is a highly significant component within the 3500 monitoring system ecosystem.

Functionally, it serves as a vital connection point between the 3500 monitoring system and compatible software, such as the System 1 condition monitoring and diagnostic software as well as the 3500 system configuration software. This module ingeniously combines the functions of a 3500/20 Rack Interface Module (RIM) with the data - collection capabilities similar to those of a communication processor like TDXnet.

In a 3500 rack, it is installed in the slot adjacent to the power supplies. Here, it interfaces with M - series monitors, including the 3500/40M, 3500/42M, and others. Its core task is to continuously gather both steady - state data, which reflects the normal, ongoing operational conditions of the machinery, and transient dynamic (waveform) data. These waveforms can provide crucial insights into sudden changes or anomalies in the machinery's operation. Once collected, this data is then passed through an ethernet link to the host software. This seamless data transfer enables in - depth analysis of the machinery's condition, allowing for early detection of potential issues and proactive maintenance.

In terms of data capture capabilities, the module has a standard static data capture function. However, when an optional channel enabling disk is utilized, it unlocks the ability to capture dynamic and high - resolution transient data. This flexibility in data capture makes it suitable for a wide range of applications, from routine monitoring to more complex diagnostic scenarios where detailed, high - precision data is required.

Despite its importance in data management and communication within the rack, the 3500 - 22M 138607 - 01 is not part of the critical monitoring path. This means that its normal operation or any malfunctions it may experience do not directly impact the proper and normal functioning of the overall monitor system for automatic machinery protection. In every 3500 rack, one such Transient Data Interface Module or a Rack Interface Module is essential, and it always occupies slot 1, right next to the power supplies.

From a technical specification perspective, it has a power consumption of 10.5 watts, indicating its energy - efficient operation. The front panel is equipped with a USB - B port, which can be used for certain diagnostic or configuration tasks. For network connectivity, it offers 10Base - T/100Base - TX ethernet with auto - sensing capabilities, making it adaptable to different network speeds. Additionally, it has the option for 100Base - FX fiber - optic ethernet, which is useful in environments where electrical interference may be an issue or for long - distance data transmission.

The module also features several front - panel LEDs for status indication. The "ok" LED lights up when the 3500/22M is operating properly, providing a quick visual cue to operators. The "tx/rx" LED indicates when the module is actively communicating with other modules in the rack, ensuring smooth data flow within the system. The "tm" LED shows when the 3500 rack is in trip multiply mode, which is an important operational state to be aware of in machinery protection systems. Finally, the "config ok" LED indicates that the 3500 rack has a valid configuration, which is crucial for the proper functioning of the entire monitoring setup.

In industrial settings, such as power generation plants, oil and gas refineries, and manufacturing facilities, the BENTLY 3500 - 22M 138607 - 01 Transient Data Interface Module plays a pivotal role. It helps in maintaining the reliability and efficiency of critical machinery by providing accurate and timely data for comprehensive condition monitoring and diagnostic purposes.

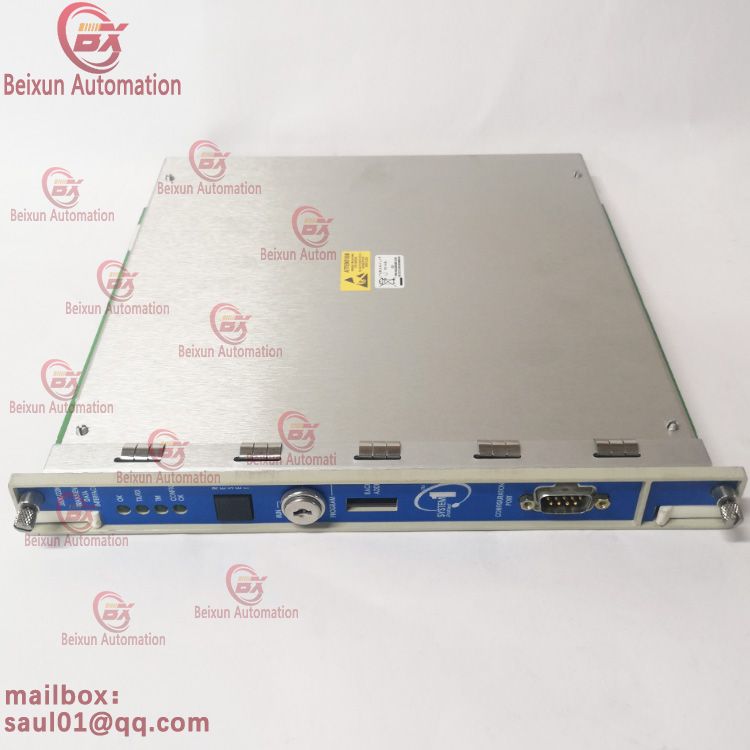

BENTLY 3500-22M 138607-01 Transient Data Interface Module
