Number of measurement axes: Equipped with two measurement axes, it can simultaneously measure displacement in two directions, meeting the needs of complex measurement scenarios. For example, in precision machine tool processing, it can synchronously monitor the displacement of the tool in the X and Y directions.

Resolution: Position resolution reaches 1.24 nm, enabling precise capture of extremely small displacement changes. In semiconductor chip manufacturing, control of nanometer-level precision is critical.

Measurement speed: Maximum speed of ±0.475 m/s, enabling rapid response to displacement changes of the target object while maintaining high resolution. This makes it suitable for dynamic measurement scenarios that require both measurement speed and precision.

Accuracy: Accuracy (σ) at maximum speed is 1.6 nm, ensuring high measurement accuracy even at high speeds, providing reliable assurance for precision measurements.

Optical power requirements: The minimum optical power is 8.0μW, with certain requirements for input optical power to ensure stable and precise operation of the measurement board.

Physical characteristics: Weight approximately 1kg, lightweight and easy to integrate into various devices; the gap between the two ends of the cable is 127mm, facilitating cable connection and layout.

Electrical Requirements: The nominal power requirement is +5.2 Vdc, with a current of 3.3 A. A stable power supply is required to ensure the normal operation of the measurement board.

Environmental Conditions: The operating temperature range is 0 to 40°C, with non-condensing conditions required. The device can operate stably within this environmental range, ensuring measurement performance.

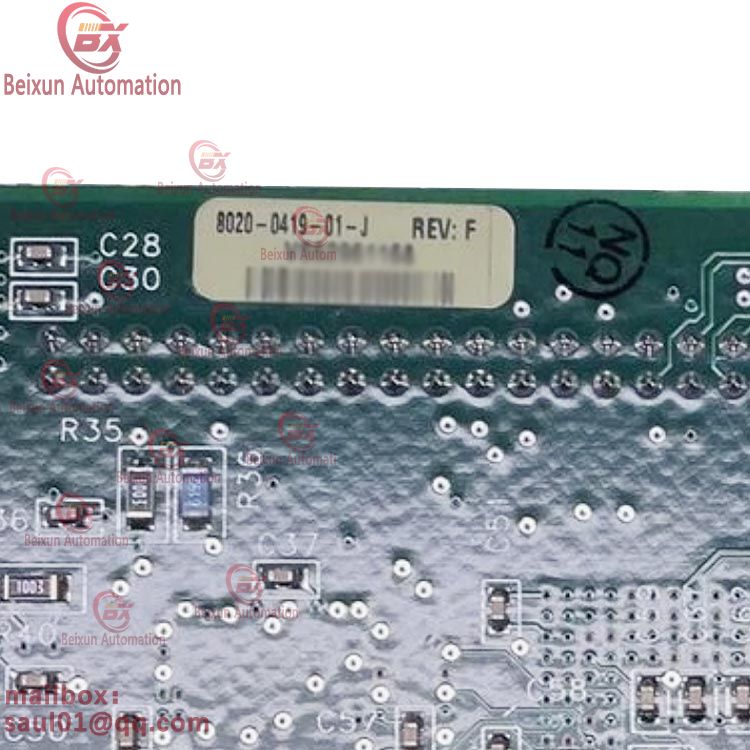

Zygo ZMI-501 Measurement Board

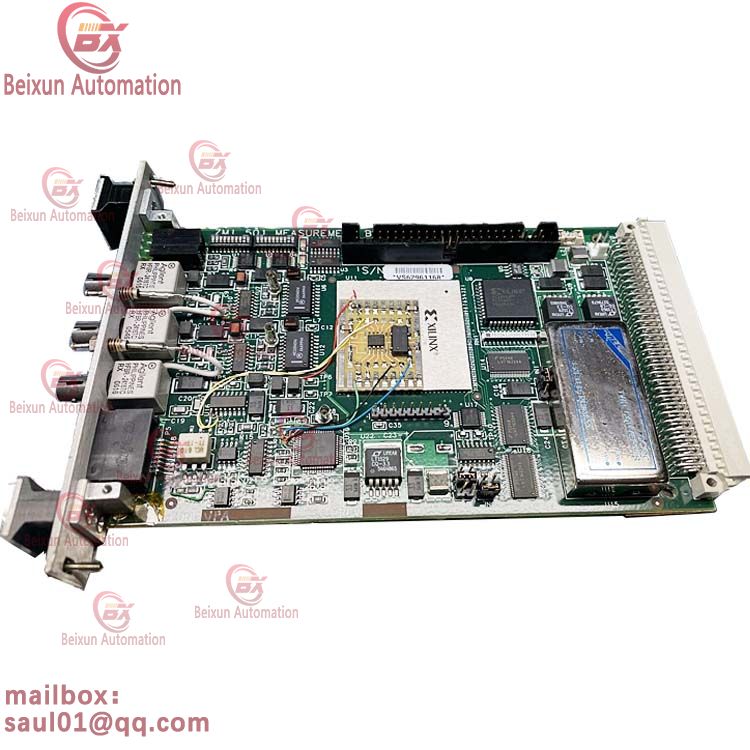

Zygo ZMI-501 Measurement Board

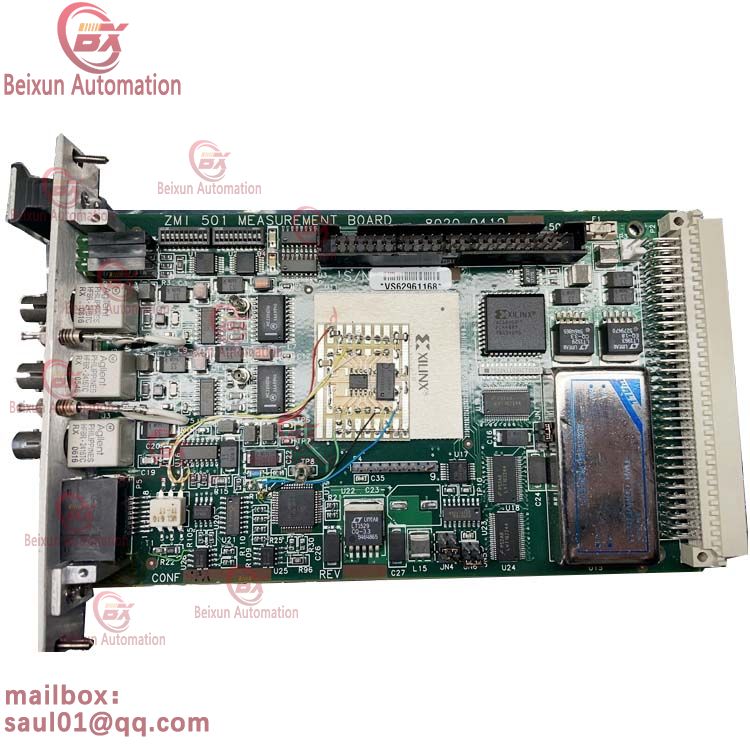

Zygo ZMI-501 Measurement Board
