Rack: The physical frame structure that carries the entire system or equipment. It usually contains mounting rails, front panels, rear panels, power supply mounting positions, fan positions, etc. This rack is designed for the MFC-10-2 system.

Backplane: A printed circuit board mounted at the rear of the rack interior. It is the core interconnection hub of the system and its main functions include:

Connectors: Provide slots or interfaces for mounting and connecting various function module boards (e.g., processor cards, I/O cards, communication cards, power modules, etc.).

Signal Bus: Integrates data transfer buses (e.g., PCI, PCIe, VME, VPX, or proprietary buses) to enable high-speed communication between module boards.

Power Distribution: Distributes power from the system power supply to the module boards via backplane alignments.

Management Signals: May carry system management signals such as fan control, temperature monitoring, module presence detection, etc.

Overall Meaning: This part number represents the complete physical assembly used with CCC's MFC-10-2 series devices, including the chassis frame and the core backplane circuit board. It is the basic hardware platform for the construction of the system.

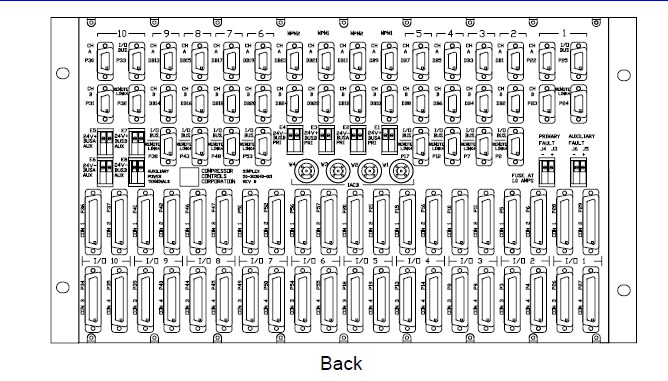

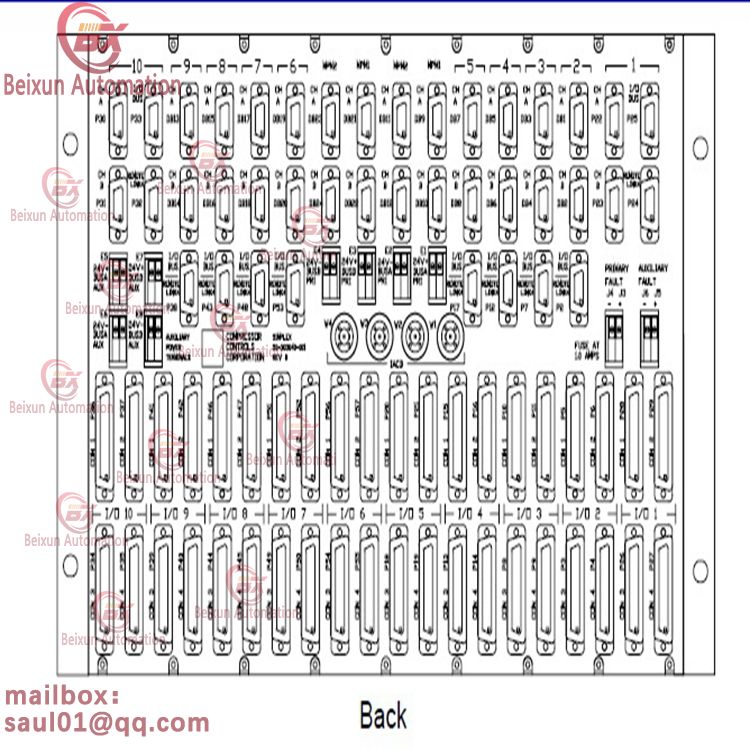

CCC MFC-10-2 50-303040-001 Rack and backplane

CCC MFC-10-2 50-303040-001 Rack and backplane

CCC MFC-10-2 50-303040-001 Rack and backplane
