GE V7768-320001 V7768SBC Single Board Computer

GE V7768-320001 V7768SBC Single Board Computer

1.Warranty time: 1 year

2.Delivery time: 3-5 days

3.Product quality: new or discontinued second-hand

Inquire Now

Tags:

Additional Information:

1. We are a global trading company, we have a large stock of spare parts, we also produce energy storage batteries

2. Our main sales products are industrial automation control equipment accessories, such as: controller board, processor module, communication module, input and output module, power module (various circuit boards and cards), touch screen, servo driver, servo motor, sensor, cable......

3. We can not only provide new products, but also supply cold and discontinued spare parts, all the discontinued parts will go through strict testing to ensure the reliability of product performance, so that customers can buy and use at ease

4. For more information, please contact us: Contact: Amy | Email: saul01@qq.com | Tel(WhatsApp/Wechat): +86-15359298283

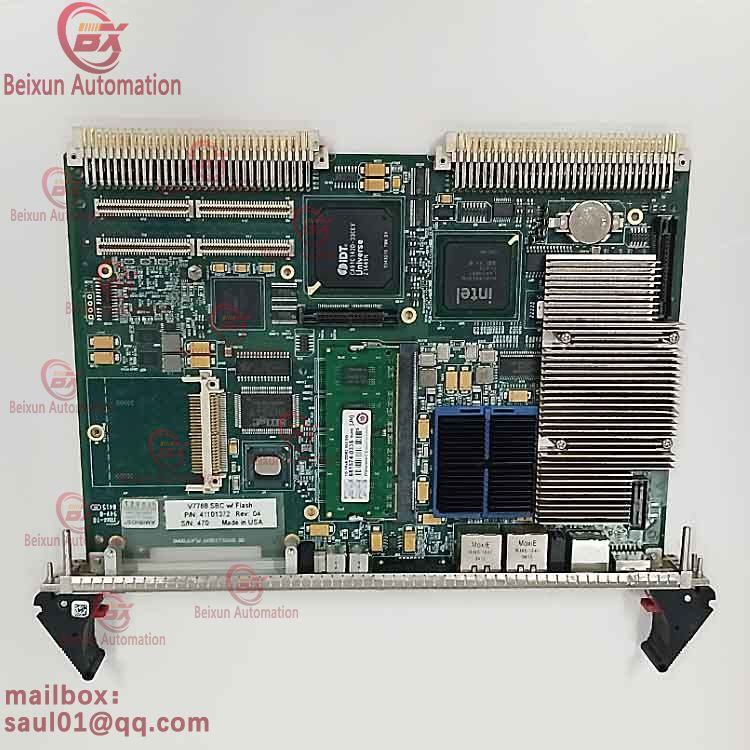

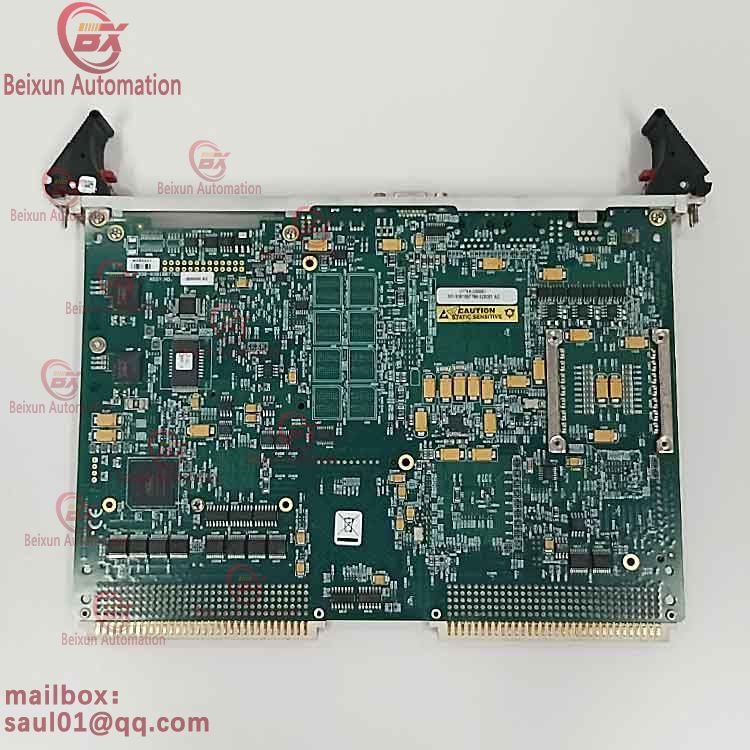

The GE V7768 - 320001 V7768SBC is a high - performance single - board computer introduced by GE Fanuc Intelligent Platforms (now GE Intelligent Platforms) in 2007. This 6U VME - compliant board is a game - changer for various industries, thanks to its powerful hardware configuration and rich I/O capabilities.

At its core, the V7768SBC is powered by an Intel Core 2 Duo processor, delivering a maximum processing speed of 2.16 GHz. Paired with up to 2 GB of DDR2 SDRAM, it ensures smooth operation even for the most demanding applications. Additionally, there's an option for an Intel Celeron M processor, which extends the upper operating temperature limit by 20 degrees Celsius, making it suitable for harsher environments. The board also features a 4 - Mbyte L2 cache for the Core 2 Duo and 1 - Mbyte L2 cache for the Celeron M, further enhancing data access speeds.

The I/O functionality of the V7768SBC is extensive. It comes with dual gigabit ethernet ports on the front panel, enabling high - speed network connectivity. There are two SATA interfaces for storage expansion, four USB 2.0 ports (two on the front and two on the rear) for easy connection of peripherals, and two serial ports for legacy device communication. The board also has a PS/2 keyboard and mouse interface on the front panel, along with an SVGA output for visual display.

For expansion, the V7768SBC includes a PCI - X capable PMC site. It also supports a board - to - board connection for the PMC 237 cm 1 / V PMC expansion board, which provides an additional three PMC expansion sites, giving users the flexibility to customize and enhance the board's capabilities according to their specific requirements.

In terms of storage, it can support up to 8 GB of bootable compact flash, accessible via the secondary IDE port and configurable as a boot device through the BIOS. The V7768SBC's BIOS, including both the system and video BIOS, is stored in reprogrammable flash memory, allowing for easy updates.

This single - board computer is compatible with a wide range of operating systems, such as Windows XP, VxWorks, and Linux, making it adaptable to different software ecosystems. It adheres to the VME 6U standard, ensuring seamless integration with existing VME systems. The Tundra Universe II on the board supports VME64 modes like A32/A24/D32/D08(EO)/MBLT 64/BLT 32, along with hardware byte swapping and enhanced bus error handling for reliable data transfer.

The GE V7768 - 320001 V7768SBC is widely used in industries like industrial automation for control systems and data acquisition, telecommunications for network equipment, military and aerospace for ruggedized computing platforms, medical imaging to enhance medical equipment performance, and transportation for vehicle control systems and onboard computers. With dimensions of 241 x 194 x 152 mm and a weight of 3 kg, it is a compact yet powerful solution for applications where high computing power and flexible I/O are essential.
