1. We are a global trading company, we have a large stock of spare parts, we also
produce energy storage batteries
2. Our main sales products are industrial automation control equipment
accessories, such as: controller board, processor module, communication module, input and output
module, power module (various circuit boards and cards), touch screen, servo driver, servo motor,
sensor, cable......
3. We can not only provide new products, but also supply cold and discontinued
spare parts, all the discontinued parts will go through strict testing to ensure the reliability of
product performance, so that customers can buy and use at ease
4. For more information, please contact us: Contact: Amy | Email: saul01@qq.com | Tel(WhatsApp/Wechat): +86-15359298283
- Processor: It is equipped with an Intel Pentium III processor, which can provide a processor speed of up to 1.26 GHz3. The Pentium III processor has a 32 - bit addressing and a 64 - bit data bus, and its superscalar architecture allows three instructions to be executed per clock cycle3. It also has a dynamic branch prediction unit, separate instruction and data caches, and MMX™ technology, which can improve the performance of the processor3. In addition, it provides 256 KB (512 KB at 1.26 GHz) of advanced transfer cache (on - chip full - speed L2 cache)3.
- Memory: The module accepts a 144 - pin SDRAM SODIMM with a maximum memory capacity of 512 MB3. It also has 32 KB of non - volatile SRAM and can provide up to 1 GB of IDE CompactFlash memory accessed through the auxiliary ID port3.
- Interface: It is equipped with dual - Ethernet interfaces (10/100/1000 Mbps), 2 serial ports (RS - 232/RS - 422), and optional SCSI, IDE, or additional serial ports for expanded connectivity4. It also supports the IEEE P1386 common mezzanine card specification and 5V PCI mezzanine card (PMC) expansion sites3. In addition, it integrates a National Semiconductor Super I/O (SIO) chip, including a 16550 UART - compatible serial port, a keyboard and mouse port, and general - purpose system monitoring function I/O5.
- VGA Controller: The VMIVME - 7750 has a built - in 815E chipset AGP graphics adapter, which supports high - resolution graphics and multimedia - quality video3. This adapter is implemented by a 4 - megabyte external synchronous DRAM cache with a high - bandwidth 64 - bit data interface3.
- High - Speed Processing: Thanks to the powerful Pentium III processor, it can handle complex industrial automation tasks and real - time data processing with high efficiency, meeting the requirements of various demanding industrial applications.
- Wide Compatibility: It supports a variety of real - time operating systems (RTOS) and Linux, and has a variety of communication interfaces, which can be easily integrated with other devices and systems in industrial automation systems to achieve seamless connection.
- Reliable Operation: With a rugged design, it can operate reliably in harsh industrial environments with an operating temperature range of 0 °C to + 60 °C and a storage temperature range of - 40 °C to + 85 °C4.
- Industrial Automation: It can be used in factory automation production lines to control and monitor various devices such as motors, sensors, and actuators to achieve automated production processes.
- Process Control: In the process control of the chemical, petroleum, and other industries, it is used to collect and process data from various process parameters such as temperature, pressure, and flow, and realize the monitoring and control of the production process.
- Test and Measurement: It can be applied to the test and measurement system, combined with the test equipment to complete the data acquisition, analysis, and control functions, and improve the accuracy and efficiency of the test.

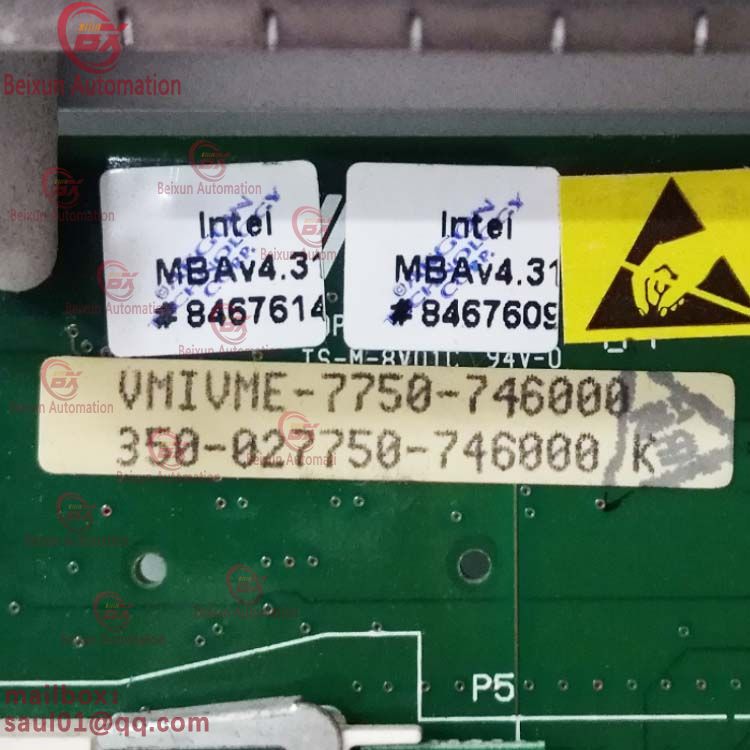

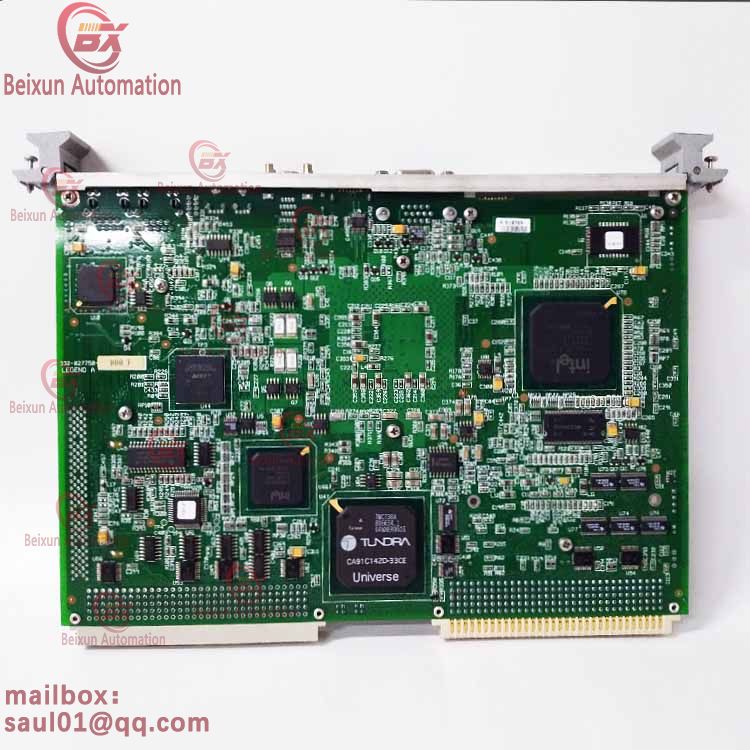

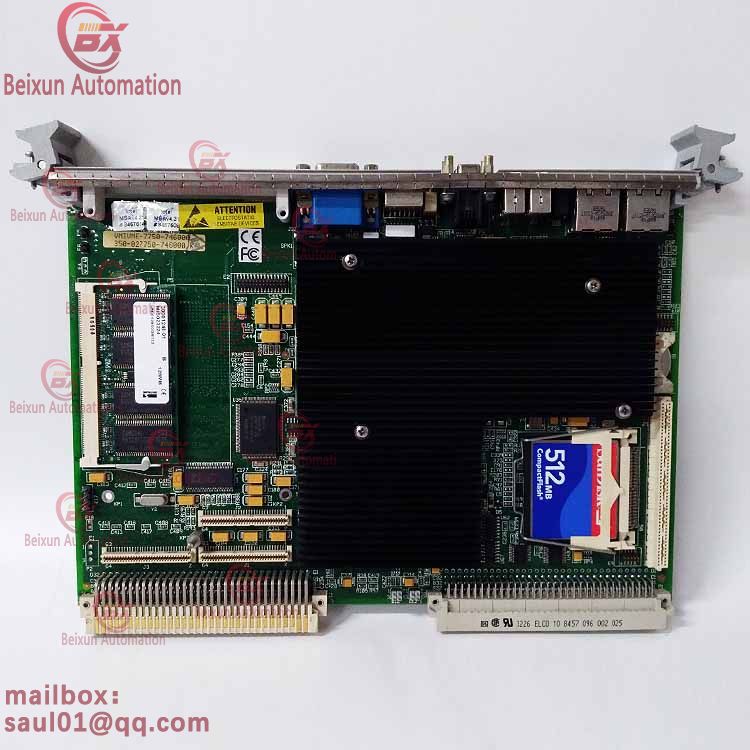

Ge Fanuc VMIVME7750 VMIVME-7750-746000 CPU Module
Ge Fanuc VMIVME7750 VMIVME-7750-746000 CPU Module
Ge Fanuc VMIVME7750 VMIVME-7750-746000 CPU Module
Ge Fanuc VMIVME7750 VMIVME-7750-746000 CPU Module
