GE Fanuc IC693DNM200-RB DeviceNet Master Module: Industrial Communication Hub

The GE Fanuc IC693DNM200-RB is a high-performance DeviceNet Master Module designed for the GE Fanuc 90-30 series PLC system. As a key component in industrial automation networks, it enables seamless communication between the PLC and decentralized DeviceNet slave devices, ensuring real-time data exchange and efficient control in manufacturing, automotive, and process industries.

DeviceNet Network Architecture

As a master module, the IC693DNM200-RB serves as the central coordinator for DeviceNet networks, which follow the open-standard protocol defined by the Open DeviceNet Vendors Association (ODVA). Key features include:

Master-Slave Communication: Manages up to 64 slave devices, assigning unique addresses (1-63) and polling each device for input data while sending output commands. For example, in an automotive assembly line, it can communicate with robotic welders, proximity sensors, and pneumatic valves simultaneously.

Data Throughput: Supports baud rates of 125 kbps, 250 kbps, and 500 kbps, adapting to network scale and real-time requirements. Higher baud rates (e.g., 500 kbps) are ideal for high-speed manufacturing lines where millisecond-level response is critical.

Hardware and Configuration

The module features a compact design for DIN rail mounting within industrial control panels, with key hardware elements including:

LED Indicators: Display network status (power, communication, error), aiding in quick troubleshooting. For instance, a flashing "ERROR" LED may signal a faulty slave device or cable disruption.

Termination Switches: Enable/disable network termination resistors to prevent signal reflections, crucial for maintaining data integrity in long cable runs (up to 500 meters at 125 kbps).

Connector Ports: Includes a 25-pin D-sub connector for DeviceNet cable connection and a 9-pin RS-232 port for programming via GE Fanuc's VersaPro software.

Configuration and Programming

Using VersaPro or CIMPLICITY Machine Edition, users can:

Define Network Topology: Set baud rate, slave addresses, and input/output (I/O) mapping. For example, map a slave sensor's status to a specific register in the PLC.

Configure I/O Data: Allocate up to 1,024 bytes of input data and 1,024 bytes of output data across slave devices, supporting both cyclic (periodic) and acyclic (on-demand) communication.

Enable Fault Tolerance: Activate features like "slave dropout detection," which triggers an alarm if a device loses communication, ensuring production continuity.

Reliability and Industrial Compliance

Designed for harsh environments, the module offers:

Electromagnetic Compatibility (EMC): Meets EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (emission standards), resisting interference from motors, drives, and other equipment.

Temperature Range: Operates from -20°C to +70°C, suitable for both indoor factories and outdoor installations (e.g., petrochemical plants).

Redundancy Options: Supports power redundancy when paired with compatible power supplies, minimizing downtime in case of primary power failure.

GE Fanuc IC693DNM200-RB DeviceNet Master Module

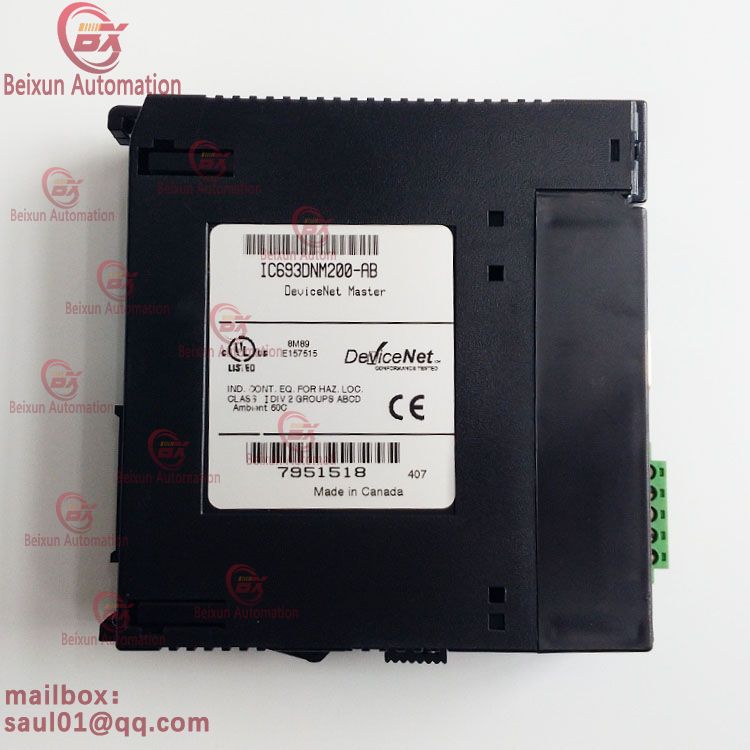

GE Fanuc IC693DNM200-RB DeviceNet Master Module
