The GE DS200TCQCG1AJD is a printed circuit board that serves as an RST Overflow Board within the Mark V series. General Electric designed this board to meet specific requirements in industrial control systems, particularly those related to turbine control.

As part of the Mark V series, which is now a defunct legacy product line, the DS200TCQCG1AJD was once a crucial component in the management and control systems of wind, steam, and gas turbine automated drive assemblies. Despite its discontinued status, it still holds significance in certain existing installations. This series was among the last to utilize General Electric's patented Speedtronic control system technology, which was first introduced with the Mark I series in the mid - to - late 1960s.

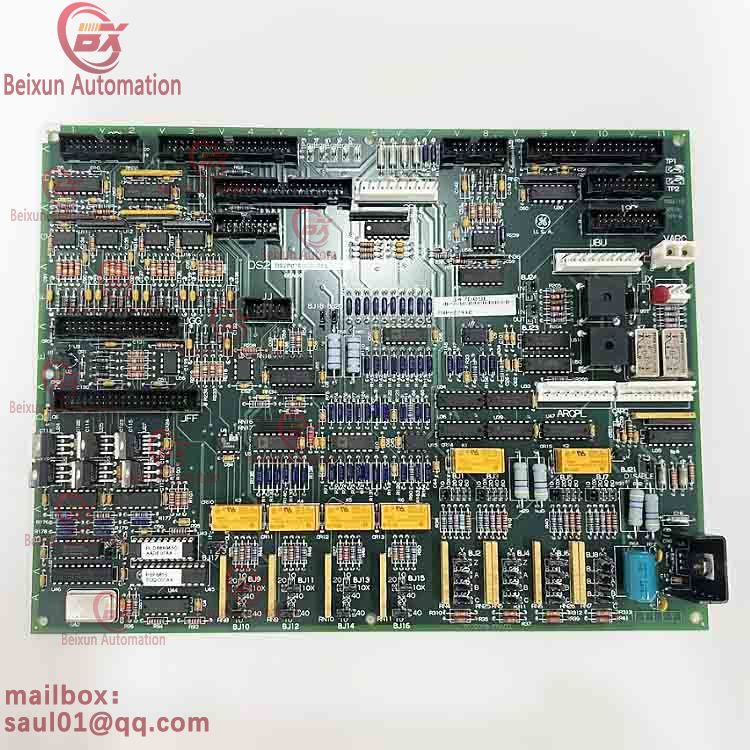

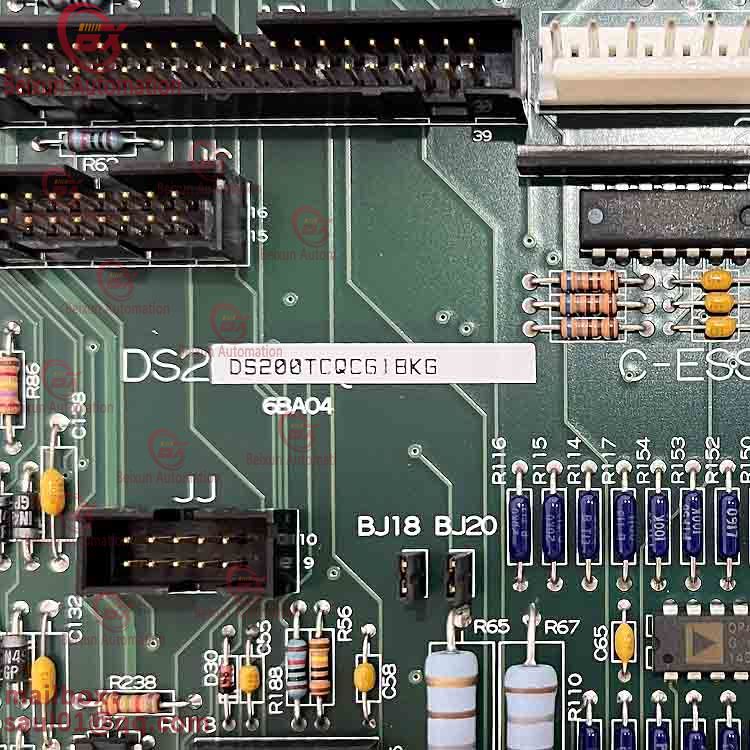

In terms of hardware, the DS200TCQCG1AJD is populated with several key components. It features 24 jumpers, which play a vital role in configuring the board according to the specific needs of the facility. When installing the board, an installer will refer to the provided installation guide, which details the function of each jumper and how their positions can alter the board's processing. By collaborating with the facility's engineering staff, the installer can set these jumpers to optimize the board's performance. In case of a board replacement due to a defective unit, the installer simply needs to set the jumpers on the new board to match those on the old one. This is done by placing both boards on a flat, clean surface, wearing a wrist strap to prevent electrostatic discharge, and comparing the jumper positions.

The board also has 3 40 - pin connectors (labeled as JFF, JE, and 6PL), 3 34 - pin connectors, and 1 16 - pin connector (with the ID JC). These connectors are essential for establishing connections with other components in the system, facilitating the transfer of signals and data. For the board to operate correctly, it requires TC QA and TC QB boards. Additionally, it has two DeNet connections, which form a six - port passive bridge for the DeNet. It also provides an exciter voltage required by the LVDT (Linear Variable Differential Transformer). The board's functional product number, DS200TCQCG1AJD, encodes important information. The "DS200" series tag indicates its version within the Mark V series assembly and its original domestic manufacture location. Other details such as the "TC QC" functional product abbreviation, the normal PCB coating style, its grouping within the Mark V series product group, and the "A - rated" primary functional product revision are also embedded in the part number.
